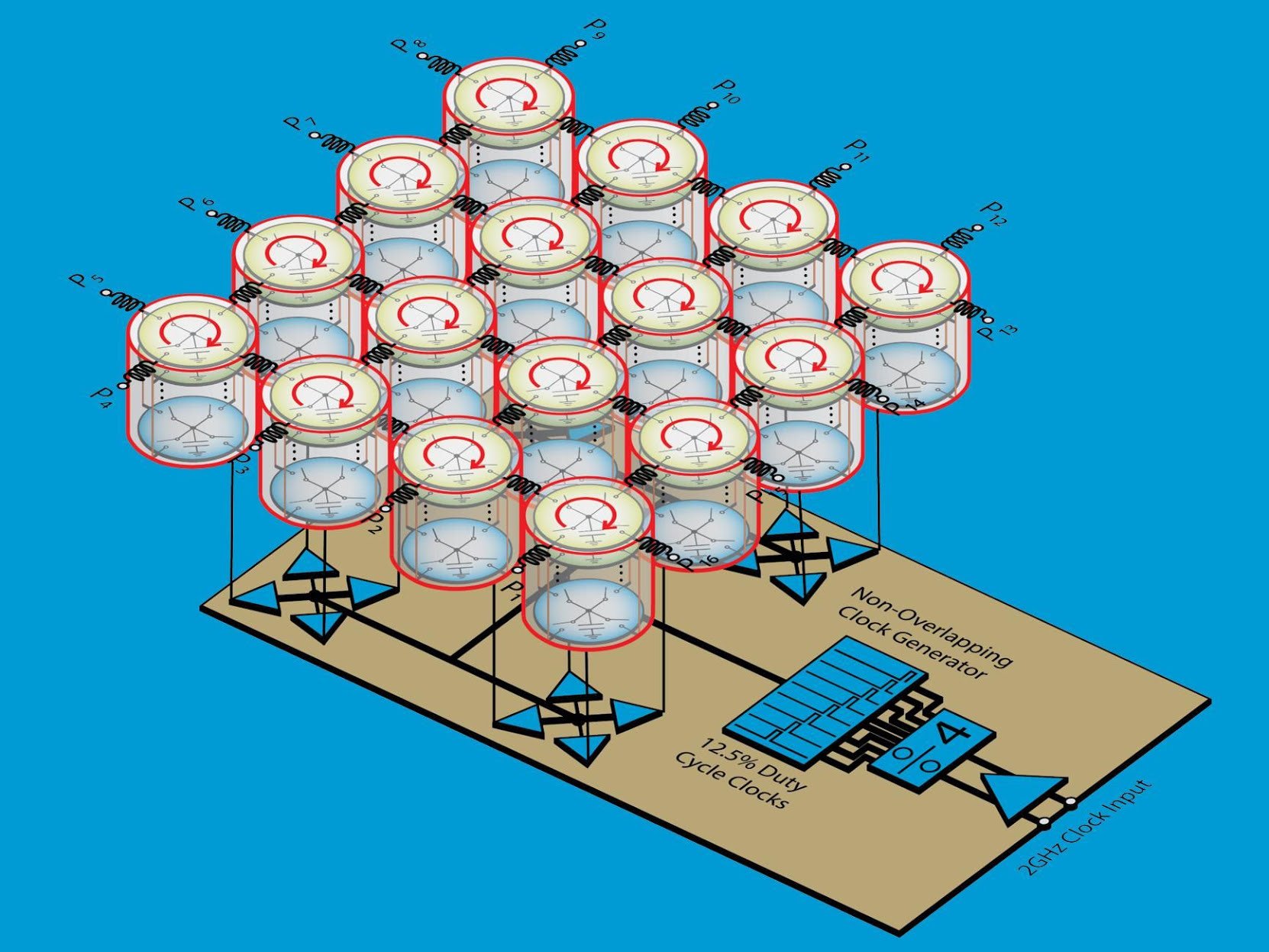

In the new study, instead of creating a photonic topological insulator whose properties depend on how a material’s structure varies in space, researchers created a device whose properties vary over time. It consists of a square lattice of 16 identical units, each of which are made of eight capacitors that can be switched on and off in patterns that result in each unit’s electric field rotating in a spiraling manner.
The main benefit of this new photonic topological electromagnetic circuit is how its units are each far smaller than the wavelengths they target, making it 100 to 1,000 times more compact than earlier photonic topological insulators. In addition, it can manipulate a much broader range of wavelengths than previous devices, spanning up to gigahertz frequencies.
“I am particularly excited by the enormous enhancement in bandwidth for a photonic topological insulator that we have been able to demonstrate, and at the same time the enormous reduction in footprint,” says study co–senior author Andrea Alù, an electrical engineer at the City University of New York’s Graduate Center. “I believe these two advances bring the whole field of photonic topological insulators much closer to applications and impact.”
Alù and his colleagues integrated their new 3.5- by 3.4-millimeter device onto a CMOS chip that enabling them to reconfigure the circuitry in real time. Electromagnetic waves could travel in a topologically protected manner without dispersion along the boundary of the device.
The researchers investigated how the new device might perform as an antenna interface for a 5G wireless system. The full-duplexphased-array system they experimented with can potentially combine the benefit of double capacity with the multiplexing gains of multiple-antenna systems. Traditionally, these systems often struggle with the complex interference that can occur within each pair of transmitters and receivers.
The scientists found their device could help each of the eight antennas in the 730-megahertz full-duplex phased-array system operate independently and simultaneously in an isolated manner. This helped suppress interference between the antennas and enabled simultaneous transmission and reception of broadband radio signals to enhance their data rates.
Alù and his colleagues also experimented their new device as the antenna interface in an ultrawideband impulse radar system. An impulse radar scans areas with brief, weak radio signals over a large bandwidth, a strategy that results in minimal interference with other wireless systems as well as high immunity to nearby radio signals.
The challenges of sending and receiving radar signals over a large bandwidth often leads conventional ultrawideband impulse radars to struggle with noise or large sizes or both. In experiments, the new photonic topological insulator could help an ultrawideband impulse radar array shape the beams from multiple transmitters and receivers in a way that could enable a much smaller and less noisy system.
“We are very excited by the prospects of applying these findings to wireless communication and radar systems,” Alù says. In addition, photonic topological insulators may find use in more robust, fault-tolerant quantum computers, the researchers say.
The scientists detailed their findings online on 2 May in the journal Nature Electronics.
